Product Summary
The XC6204B222MR is a highly precise, low noise, positive voltage LDO regulator manufactured using CMOS processes. The XC6204B222MR achieves high ripple rejection and low dropout and consists of a standard voltage source, an error correction, current limiter and a phase compensation circuit plus a driver transistor. The XC6204B222MR is ideal for: (1)Mobile phones; (2)Cordless phones; (3)Cameras, video recorders; (4)Portable games; (5)Portable AV equipment; (6)Reference voltage; (7)Battery powered equipment.
Parametrics
XC6204B222MR absolute maximum ratings: (1)Input Voltage, VIN: 12.0 V; (2)Output Current, IOUT: 500 mA; (3)Output Voltage, VOUT: VSS-0.3 to VIN+0.3 V; (4)CE Input Voltage, VCE: VSS-0.3 to VIN+0.3 V; (5)Operational Temperature Range, Topr: -40 to +85℃; (6)Storage Temperature Range, Tstg: -55 to +125℃.
Features
XC6204B222MR features: (1)CMOS Low Power Consumption; (2)Dropout Voltage : 60mV @ 30mA; 200mV @ 100mA; (3)Maximum Output Current: 150mA (300mA=XC6204 E to H Type); (4)Highly Accurate: ±2%; (5)Output Voltage Range : 1.8V to 6.0V (XC6204); 0.9V to 1.75V (XC6205); (6)Low ESR Capacitor Compatible.

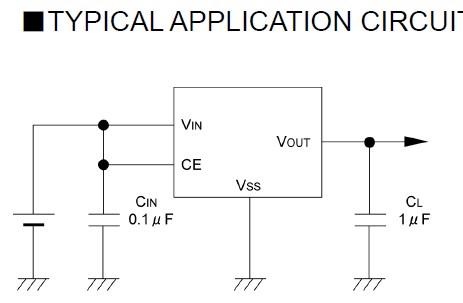

Diagrams
 |
 XC6201 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||||||||
|
XC6201P132 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||||||||
 |
XC6201P182MR-G |
|
IC REG LDO 1.8V 80MA SOT23-5 |
Data Sheet |
|
|
||||||||||||||||||
|
XC6201P182PR-G |
|
IC REG LDO 1.8V 80MA SOT89-3 |
Data Sheet |
|
|
||||||||||||||||||
|
XC6201P252MR-G |
|
IC REG LDO 2.5V .1A SOT-25 |
Data Sheet |
|
|
||||||||||||||||||
|
XC6201P252PR-G |
|
IC REG LDO 2.5V .1A SOT-89 |
Data Sheet |
|
|
||||||||||||||||||
